- Material: metal glass
- Function introduction: basic positioning, lateral deflection angle, map positioning.
- Description: The dial is 45 mm in diameter, the scale is accurate, it can be rotated, and a magnifying glass is attached.
- The foldable shell has an average thickness of 2 mm and is strong.
- It is very suitable for camping, hiking, exploring, and other outdoor activities.
The compass is medium in size and easy to carry. It is recommended to put it in your pocket, backpack or directly on your neck so that your direction will always be correct.

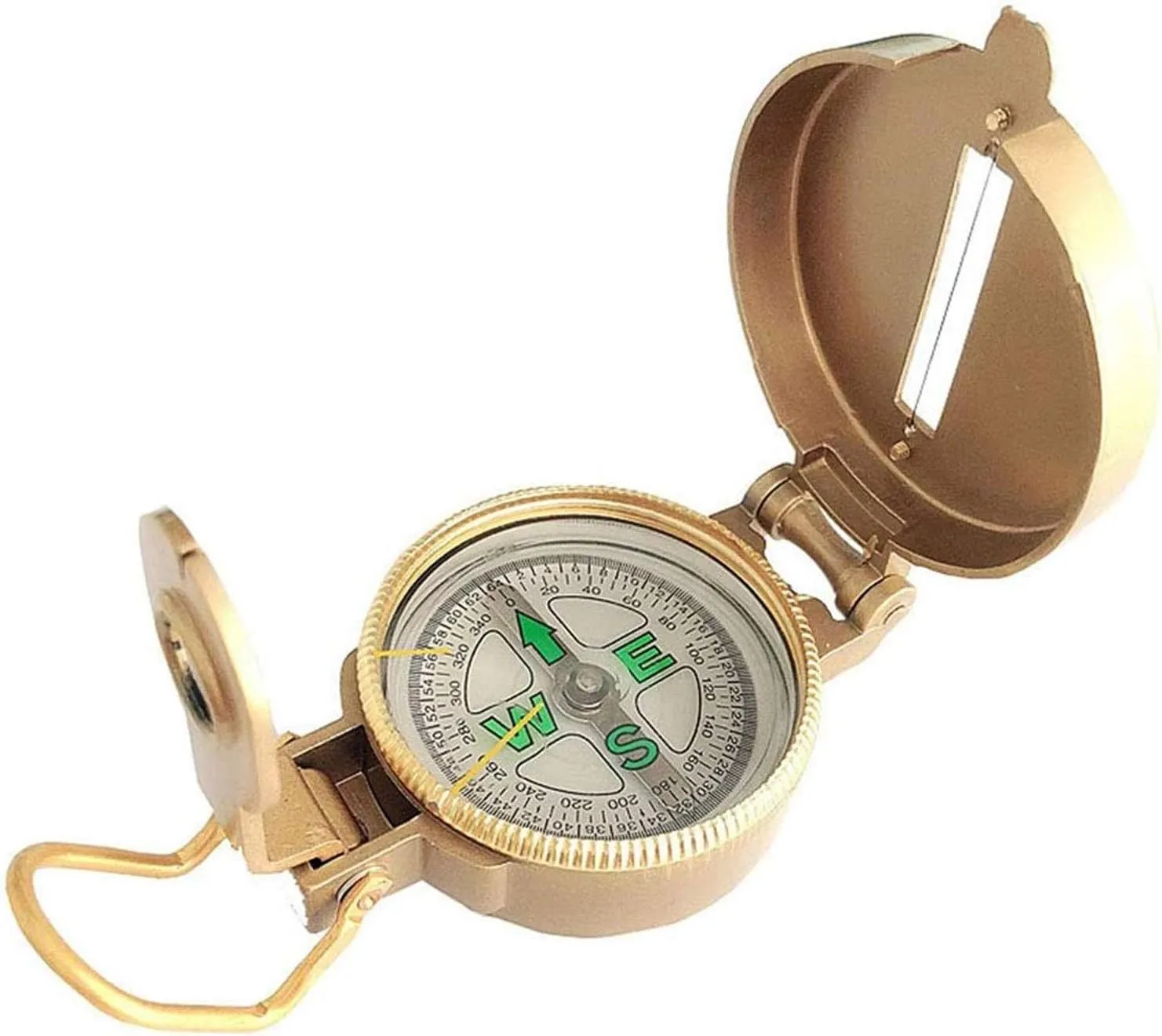

: golden spiral compass
Size: 9*6*3CM (length*width*height)
Unfold 7.5*5.5*2.6CM (length*width*height) to fold.
Dial diameter: 4.6CM
Weight: 100G (including packaging)
Structure and performance:
1. Orientation measuring institution:
It is composed of compass, sight and sight. The outer circle of the azimuth division is a 360° division system with a minimum division value of 2°; the inner circle is a 60-00 density division system, and the minimum division value is 0-20 divisions. The conversion between density and degree is shown in the table.
Measurement accuracy: ±0-10 dense position ±1°
2. Distance estimator:
It is composed of rear sight and front sight. The angle between the two tips of the front sight and the center edge of the rear sight is 1-00, the length between the two tips is 12.34 mm, and the length between the rear sight and the front sight is 123.4 mm, which constitutes a 10:1 ratio ranging estimator.
Measurement accuracy is 5%
3. Pitch angle measurement mechanism:
It is composed of a tilt meter plate, a tilt pendulum, a -up , etc., and its range is ±90°.
Measurement accuracy ±2.5°
4. Coordinate ladder:
It consists of a long ruler on side and a short ruler on both sides that are perpendicular to each other. The ruler is 120 mm long.
Measurement accuracy: ±0.5 mm
